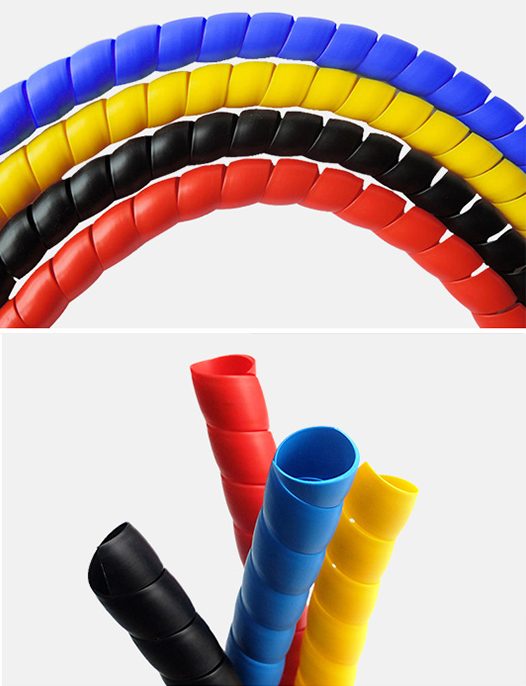

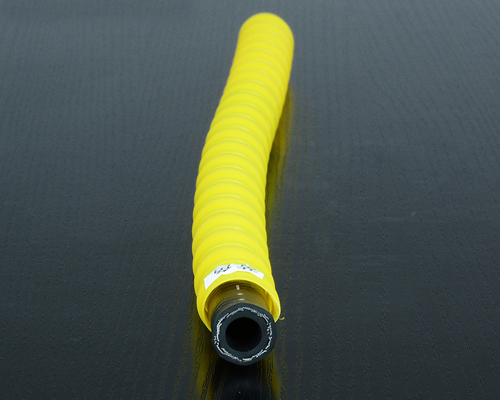

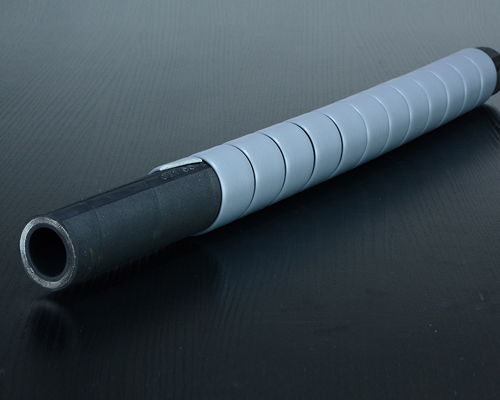

Letu Automotive is an IATF 16949:2016 accredited manufacturer from Hebei, China of a wide variety of standard and custom spiral wrap hose protectors, plastic spiral hose guard, heavy wall high density spiral hose wrap, hose protector sleeve, spiral wrap guard, hose sheathing, plastic spiral hose and cable protection, spiral protective cover, plastic hydraulic hose sleeve, spiral wrapping band, cable spiral wraps, from polypropylene (PP) or high density polyethylene (HDPE). Our spiral wrap hose protectors protect hydraulic and pneumatic hoses from deterioration, shocks and abrasion. They improve the visibility of hoses, thus preventing dangerous situations. These protective spiral wraps are easy to install either before or after hose installation.
Features:
- Provides safe protection for cables, wires, hoses, ropes and tubing.
- Manufactured by direct compression (extrusion) of the raw material.
- Durable construction and rounded edges which do not cause damage to hoses.
- Resistant to acids, oils, solvents and UV radiation.
- High impact strength and excellent resistance to abrasion.
- Operate in temperatures ranging from -50 °C to +100 °C
- Antistatic additive to reject dust and dirt.
- Cost-effective and light weight.
Application:
Our spiral wrap hose protectors are suitable for the protection of most types of hydraulic, pneumatic and industrial hose assemblies across a wide range of industries including heavy truck, construction equipment, concrete machinery, excavators, hoisting machinery, road machinery, port machinery, and coal mining machinery, as well as air conditioning pipes, car cleaning pressure hose.

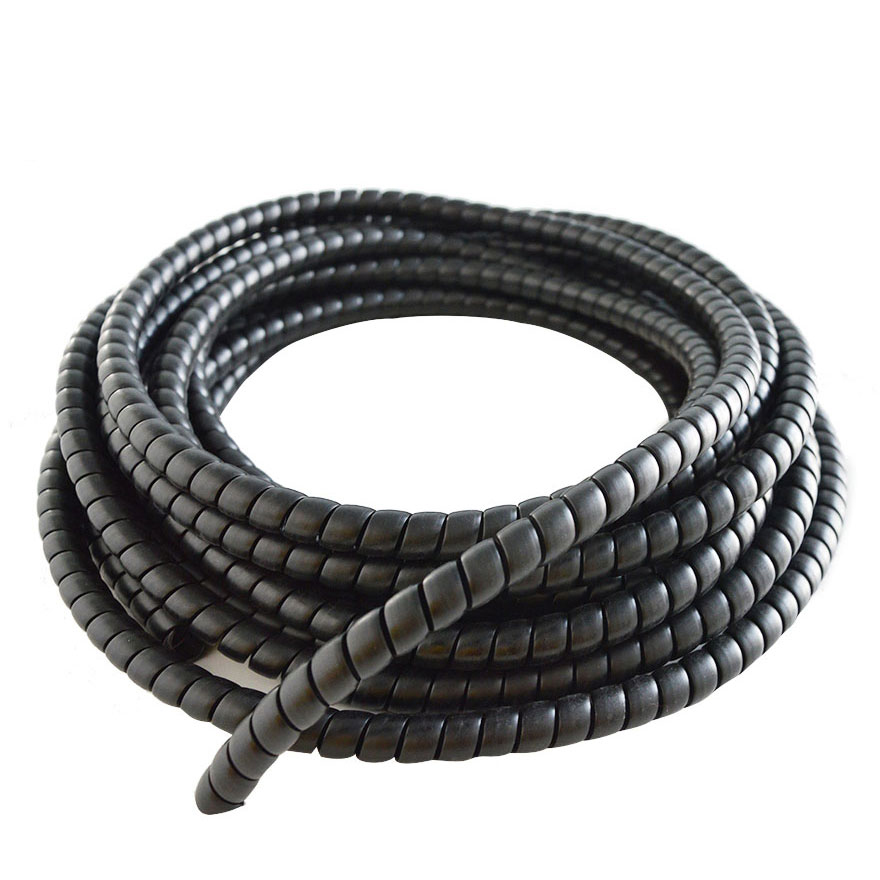

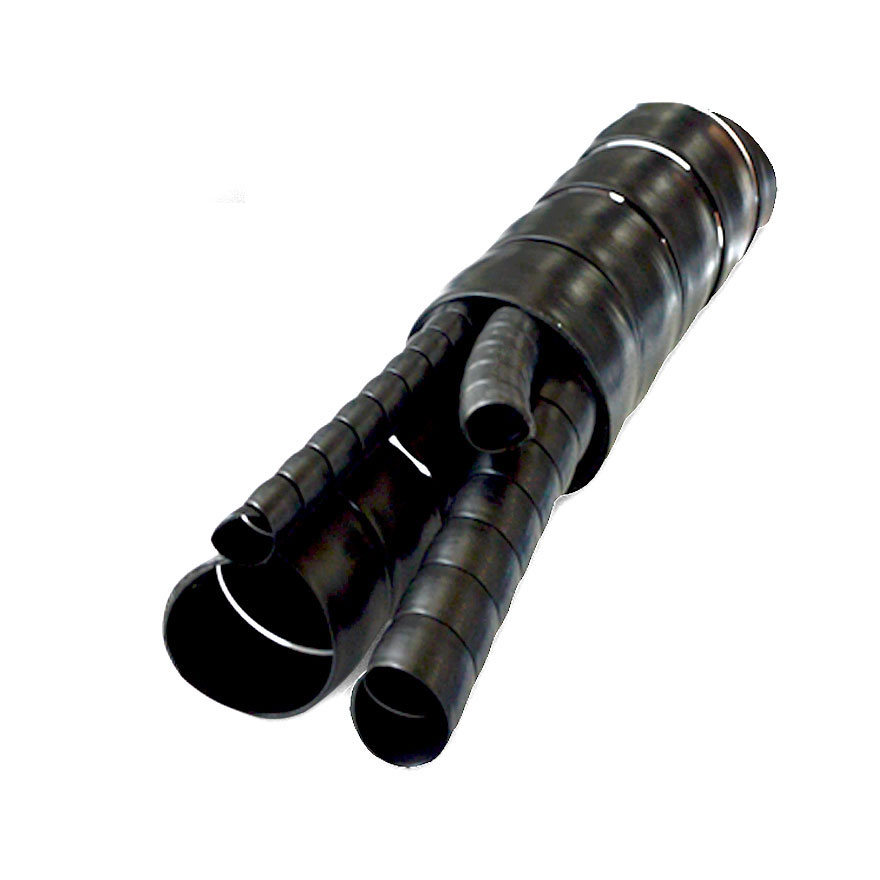

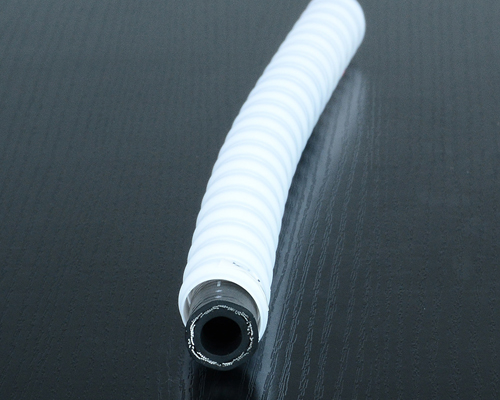

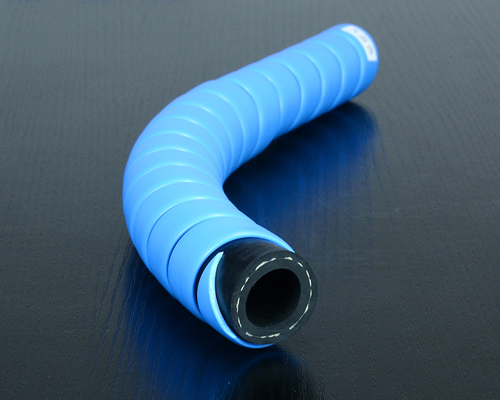

Spiral Wrap Hose Protectors
- Inner Diameter Range: 8-200mm

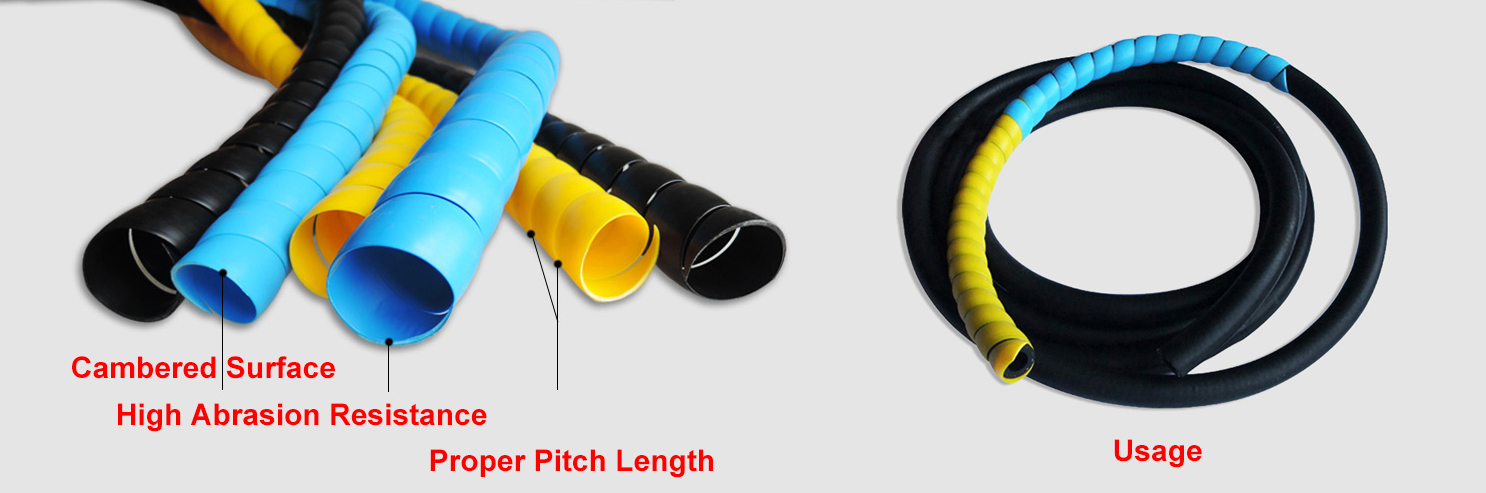

- Type: Bright Flat Surface, Bright Cambered Surface; Matt Flat Surface, Matt Cambered Surface

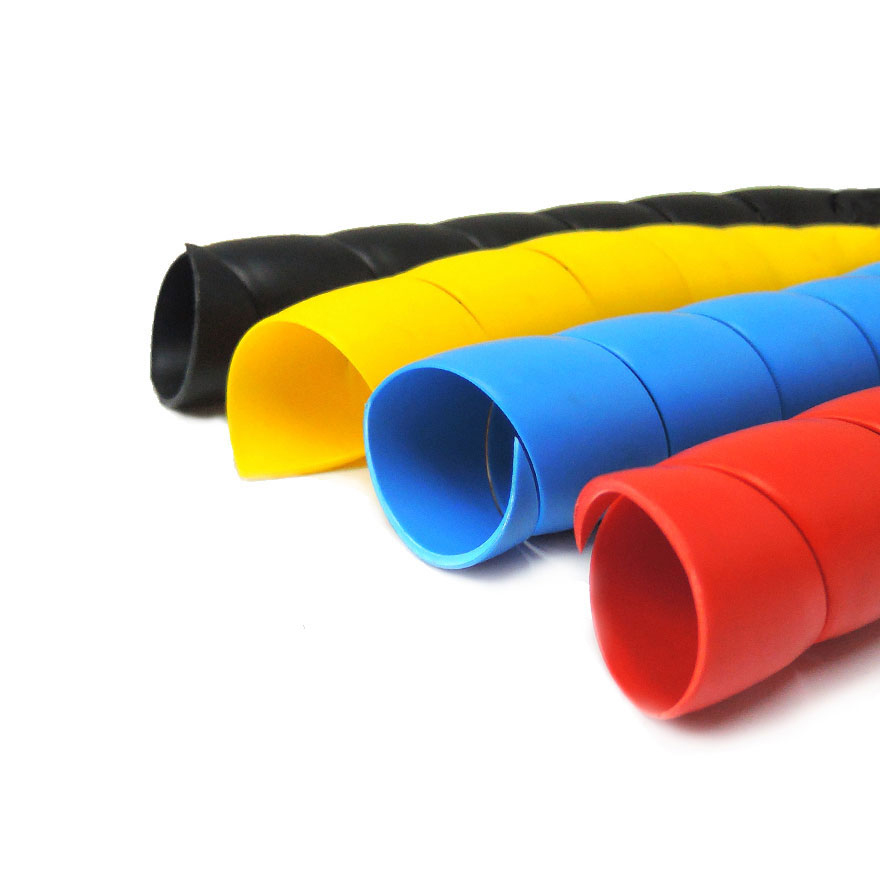

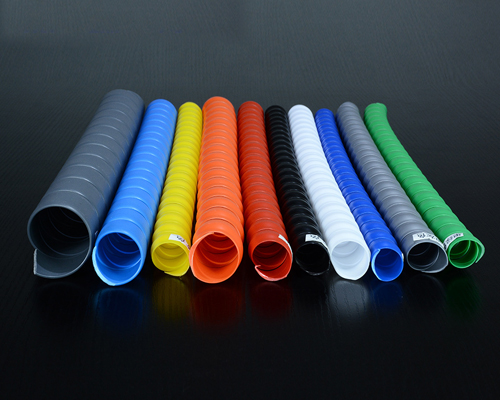

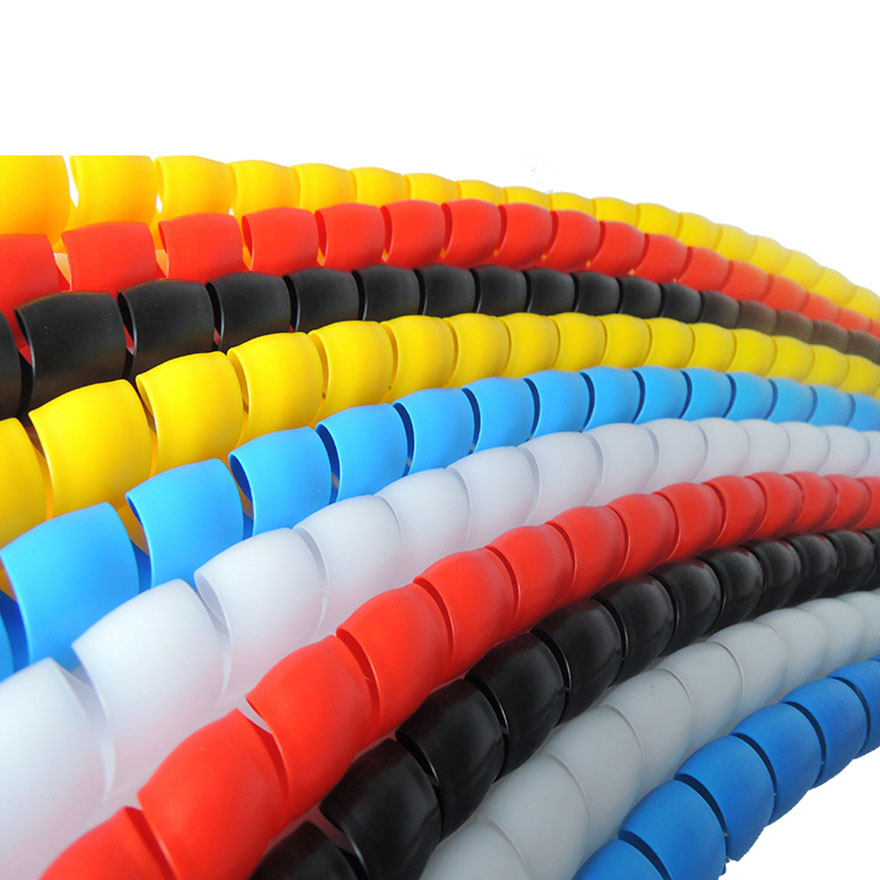

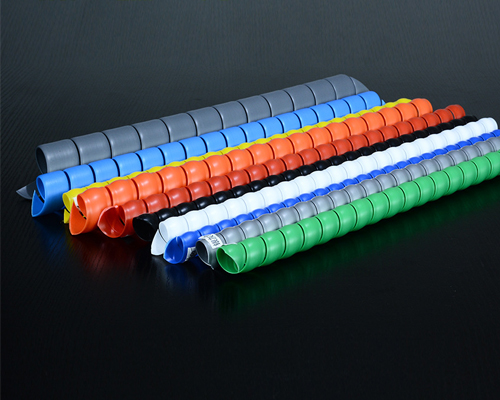

- Color: Black, Gray, Red, Yellow, Blue, White, etc.
|
Part Description |
Part No. | ID (mm) |
OD (mm) |
Wall (mm) |
Pitch (mm) |
Compatible Hose OD (mm) |
| Spiral Wrap Hose Protector | LEPP-8 | 8 | 9.4 | 1.2 | 8 | 8-12 |
| Spiral Wrap Hose Protector | LEPP-10 | 10 | 13 | 1.3 | 10 | 10-14 |
| Spiral Wrap Hose Protector | LEPP-12 | 12 | 15 | 1.5 | 12 | 12-16 |
| Spiral Wrap Hose Protector | LEPP-14 | 14 | 17 | 1.5 | 14 | 14-18 |
| Spiral Wrap Hose Protector | LEPP-16 | 16 | 20 | 2 | 16 | 16-20 |
| Spiral Wrap Hose Protector | LEPP-18 | 18 | 22 | 2 | 18 | 18-22 |
| Spiral Wrap Hose Protector | LEPP-20 | 20 | 25 | 2.5 | 18 | 20-25 |
| Spiral Wrap Hose Protector | LEPP-22 | 22 | 27 | 2.5 | 18 | 22-27 |
| Spiral Wrap Hose Protector | LEPP-25 | 25 | 30 | 2.5 | 23 | 25-30 |
| Spiral Wrap Hose Protector | LEPP-28 | 28 | 34 | 3 | 24 | 28-32 |
| Spiral Wrap Hose Protector | LEPP-30 | 30 | 36 | 3 | 25 | 30-35 |
| Spiral Wrap Hose Protector | LEPP-32 | 32 | 38 | 3 | 25 | 32-38 |
| Spiral Wrap Hose Protector | LEPP-35 | 35 | 42 | 3.5 | 25 | 35-40 |
| Spiral Wrap Hose Protector | LEPP-38 | 38 | 45 | 3.5 | 28 | 38-43 |
| Spiral Wrap Hose Protector | LEPP-42 | 42 | 49 | 3.5 | 28 | 42-50 |
| Spiral Wrap Hose Protector | LEPP-45 | 45 | 52 | 3.5 | 28 | 45-60 |
| Spiral Wrap Hose Protector | LEPP-50 | 50 | 57.4 | 3.7 | 35 | 50-70 |
| Spiral Wrap Hose Protector | LEPP-60 | 60 | 68 | 4 | 38 | 60-80 |
| Spiral Wrap Hose Protector | LEPP-74 | 74 | 82 | 4 | 47 | 74-90 |
| Spiral Wrap Hose Protector | LEPP-80 | 80 | 89 | 4.5 | 50 | 80-100 |
| Spiral Wrap Hose Protector | LEPP-88 | 88 | 97 | 4.5 | 53 | 88-110 |
| Spiral Wrap Hose Protector | LEPP-100 | 100 | 110 | 5 | 58 | 100-140 |
| Spiral Wrap Hose Protector | LEPP-130 | 130 | 140 | 5 | 58 | 130-180 |
| Spiral Wrap Hose Protector | LEPP-150 | 150 | 162 | 6 | 69 | 150-210 |
| Spiral Wrap Hose Protector | LEPP-175 | 175 | 188 | 6.5 | 75 | 175-250 |
| Spiral Wrap Hose Protector | LEPP-200 | 200 | 214 | 7 | 100 | 200-300 |
